502mm Long Aluminum Extrusion Profiles Holder Mining Industry Use

Name: 502mm Long Aluminum Extrusion Profiles Holder Mining Industry Use
Brand: HUANYU
Price: 1 USD

Buy cheap 502mm Long Aluminum Extrusion Profiles Holder Mining Industry Use product

Brand Name : HUANYU

Model Number : HYAH502

Place of Origin : CHINA

MOQ : 10 PIECES

Price : NEGOTIABLE

Payment Terms : T/T

Supply Ability : 70 METRIC TONS PER MONTH

Delivery Time : 7-10 days

Packaging Details : PLYWOOD CASE

Length : 502MM

Density : 2.78 g/cc

Ultimate Tensile Strength : 186 MPa

Yield Tensile Strength : 145 MPa

Melting Point : 616-654 Celsius Degree

Elongation at Break Percentage : 13%

Application : Copper Mining Industry

Processing Method : CNC Machining

Contact Now

502mm Long Aluminum Extrusion Profiles Aluminum Holder Mining Industry Use

Holder Length: 405mm

Holder Surface Treatment: Sandblasted & Anodized

Leadtime: 7~10 Days

Availability: 63pieces

6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.

**6063 Typical Chemical Composition %**
Weight %	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Each	Total
Minimum	0.20				0.45
Maximum	0.60	0.35	0.10	0.10	0.90	0.10	0.10	0.10	0.05	0.15

Remainder Aluminum

**6063 Typical Mechanical Properties**
Temper	Tensile					Hardness
	Ultimate		Yield		Elongation	Brinell
	KSI	MPA	KSI	MPA	%
T5, T52	27	186	21	145	12	60
T6	35	241	31	214	12	73

502mm Long Aluminum Extrusion Profiles Holder Mining Industry Use

Product Tags:

Mining Industry Aluminum Extruded Profiles

502 mm Long Aluminum Extruded Profiles

Aluminum Extruded Profiles 145 MPa

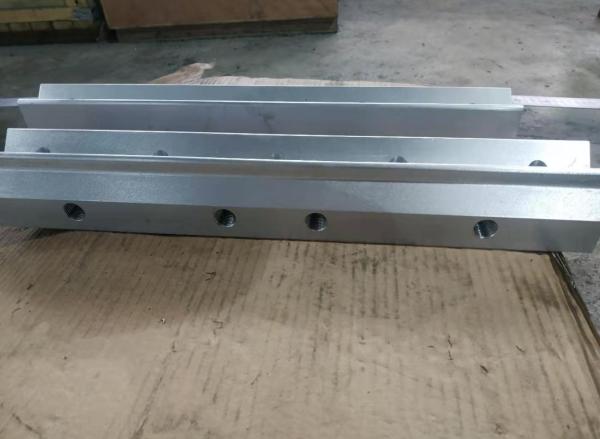

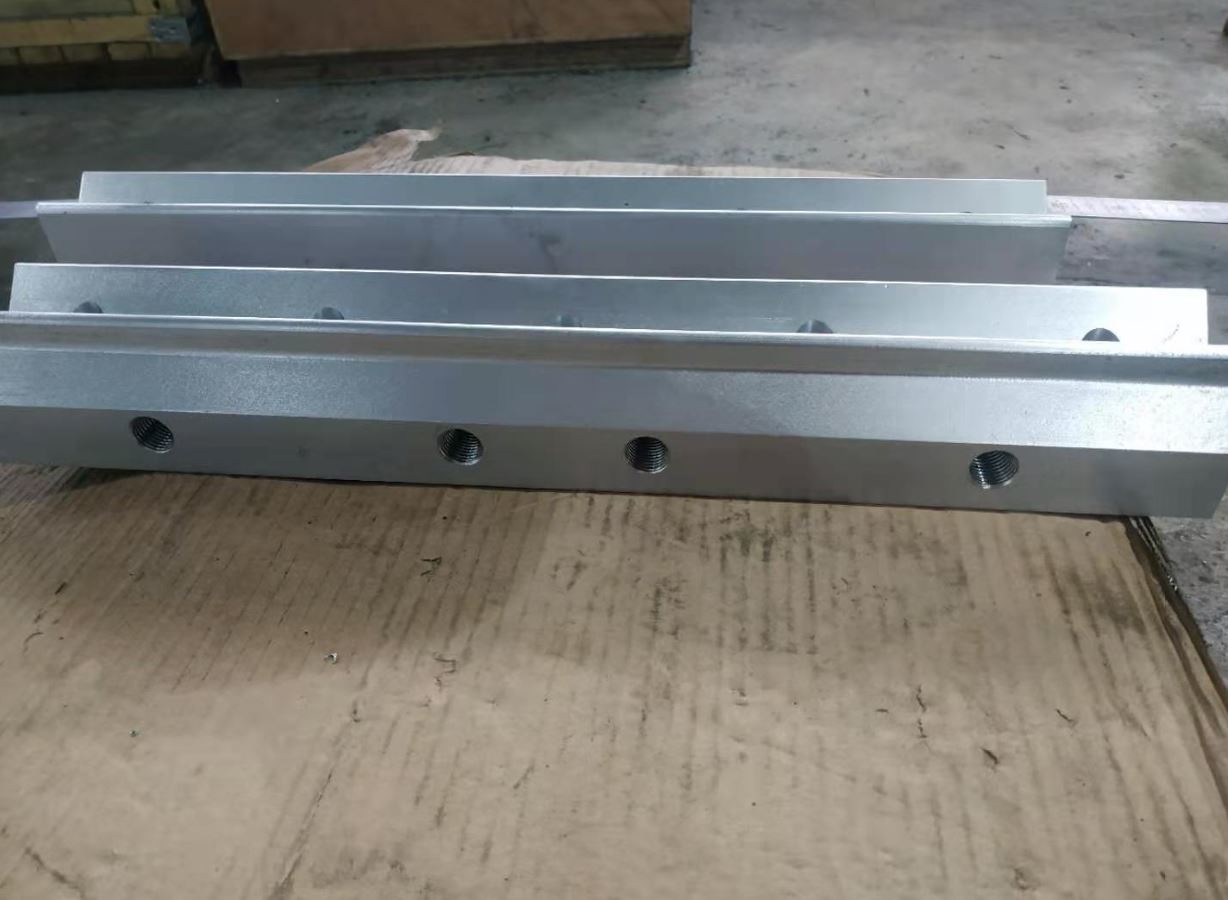

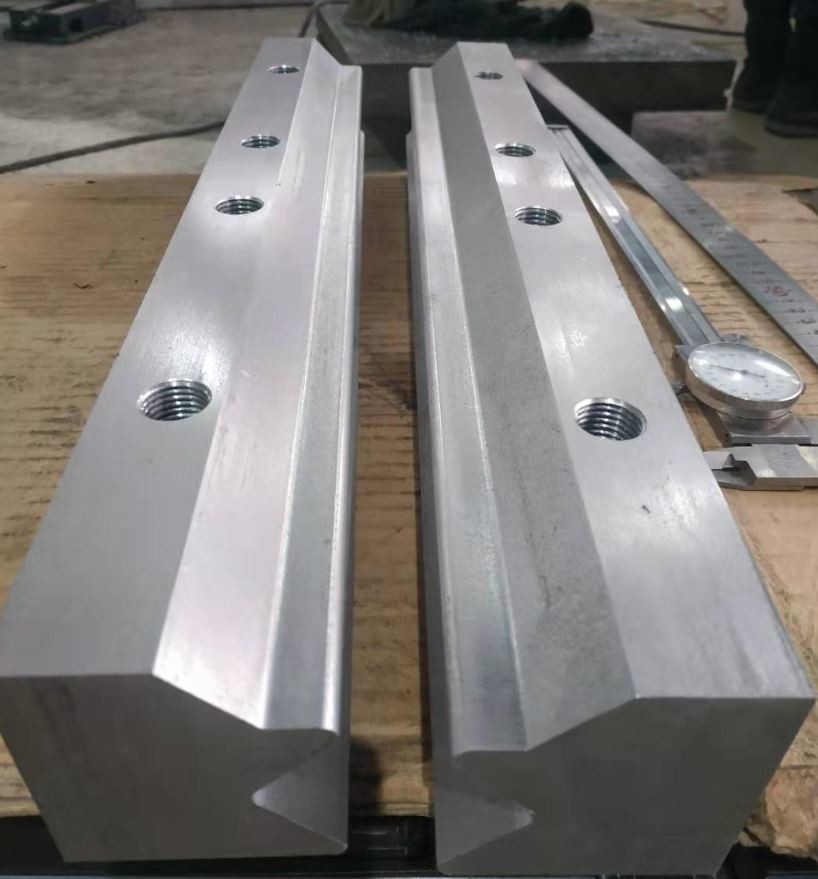

502mm Long Aluminum Extrusion Profiles Holder Mining Industry Use Images
