Aerospace Industry Aluminum Forged Ring High Ratio Weight - To - Strength

  • 1
  • 2
  • 3

Brand Name : HUANYU

Model Number : HYRF7075

Place of Origin : CHINA

MOQ : 1 METRIC TON

Price : US$11.40-US$16.89/KG

Payment Terms : T/T

Supply Ability : 140 METRIC TON/ MONTH

Delivery Time : 5 WEEKS

Packaging Details : PLAYWOOD CASE

Large Diameter : Diameter Ranging From 0.48M to 5.0M

Various Aluminum Alloy Option : 7075-7020-6063-6061-5083-5052

Swift Lead Time : 4 Weeks

Wall Thickneww : Ranges from 18.5mm to 585mm

Contact Now

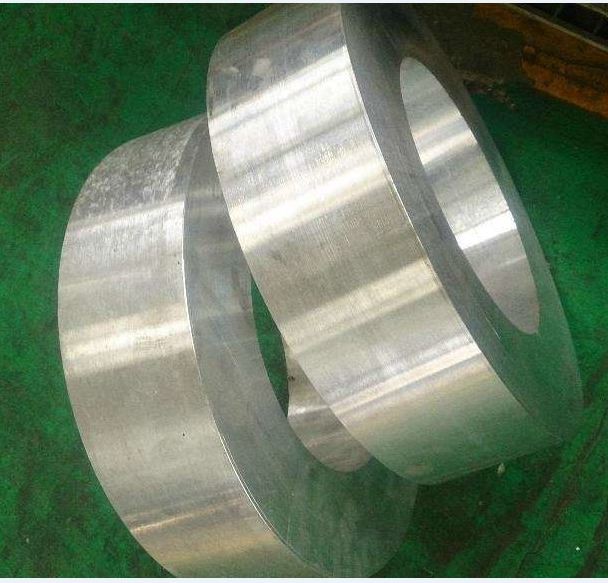

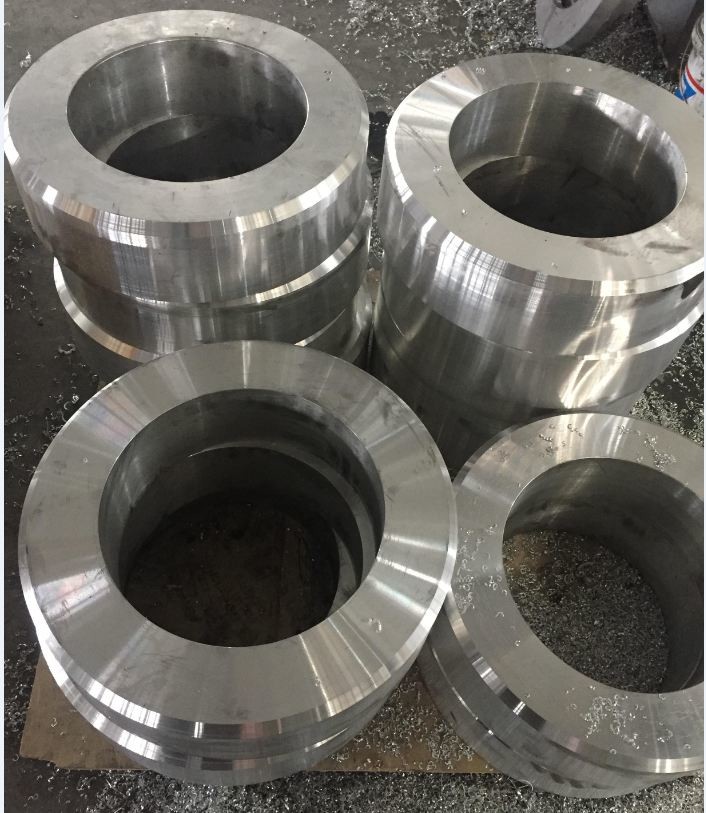

Aluminum Forged Ring Made Out of Aluminum Alloy 7075



Aluminum forings are used in various kind of industries, such as aircraft, aerospace, automotive, architectural, appliance, military and defense, marine, petrochemical and process equipment industries. Products manufactured using aluminum include those that require:



High strength-to-weight ratio, like airframes, automotive frames and panels, wheels .

Corrosion resistance such as fasteners, structural components and frames for construction and decorative architectural elements, process equipment and marine equipment.



We'll use in open die forgings, including seamless rolled rings , flanges and other forged shapes that can be machined into finished parts.

Also, custom chemistry material can be melted to non-standard alloy specifications to meet the needs of specified application.





Mechanical Properties of 7075 Aluminum

Here we can see the tensile strength, yield strength, and modulus of elasticity for the alloy in the -O, -T6, and -T73 conditions.


Property 7075-O 7075-T6, -T651 7075-T73, -T7351
Tensile Strength 228 MPa | 33000 psi 572 MPa | 83000 psi 505 MPa| 73200 psi
Yield Strength 103 MPa | 15000 psi 503 MPa | 73000 psi 435 MPa | 63100 psi
Modulus of Elasticity 71.7 GPa | 10400 ksi 71.7 GPa | 10400 ksi 72.0 GPa | 10400 ksi



Aerospace Industry Aluminum Forged Ring High Ratio Weight - To - StrengthAerospace Industry Aluminum Forged Ring High Ratio Weight - To - StrengthAerospace Industry Aluminum Forged Ring High Ratio Weight - To - Strength
