6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar

Name: 6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
Brand: HUANYU
Price: 1 USD

Buy cheap 6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar product

Brand Name : HUANYU

Model Number : HYAP6063T5

Place of Origin : CHINA

MOQ : 5 metric tons

Price : NEGOTIABLE

Payment Terms : T/T

Supply Ability : 55 METRIC TONS PER MONTH

Delivery Time : 40 DAY

Packaging Details : PLYWOOD CASE

Surface treatment : Mill Finish

Diameter : Ranging from 230mm to 568mm

Application : Motor enclosure, motor casing, motor shell

Weight Per Meter : 19KGS Through 53KGS

Ultimate Tensile Strength : 30KSI

Yield Strength : 25KSI

Contact Now

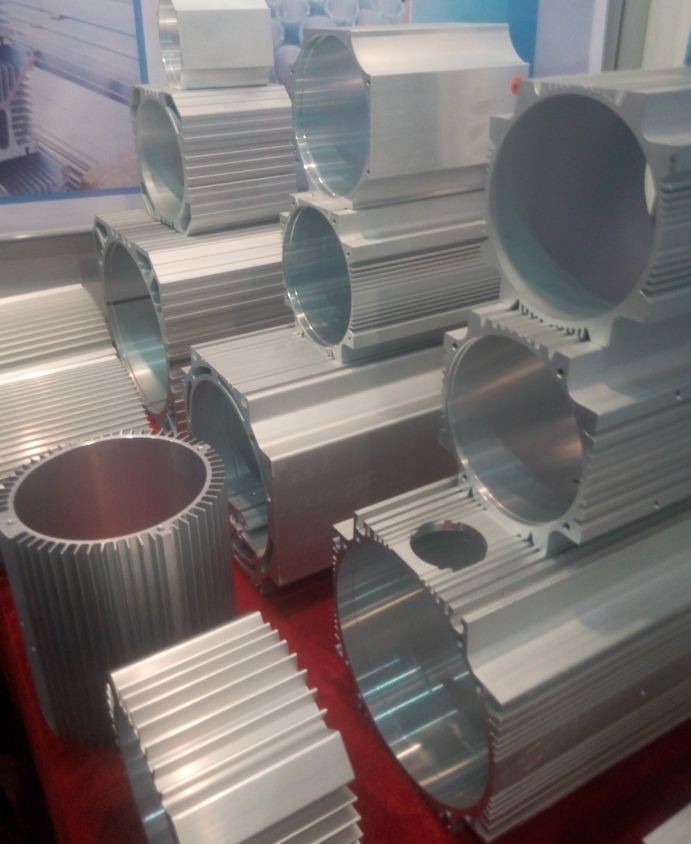

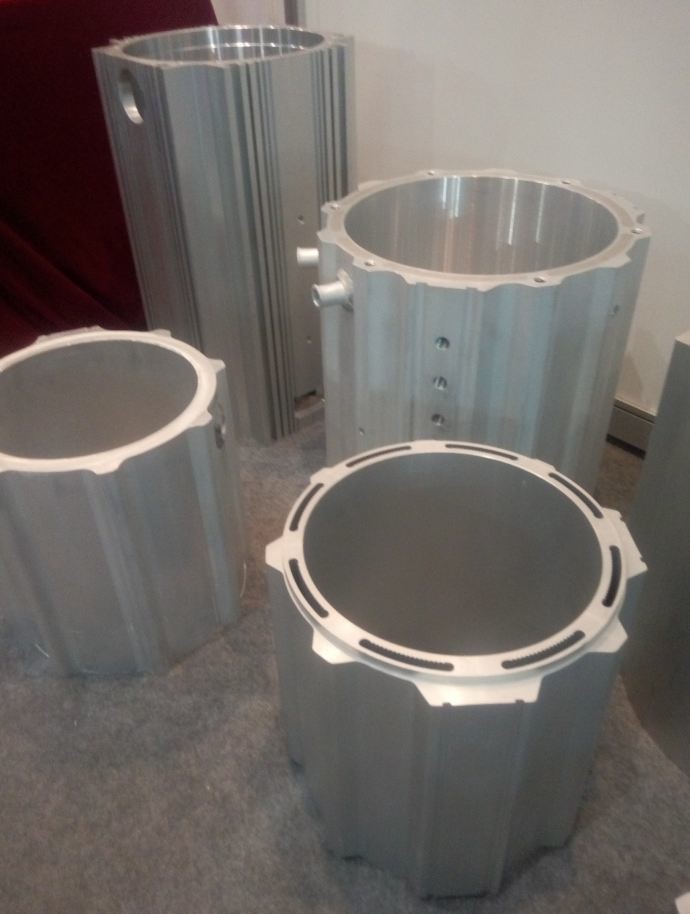

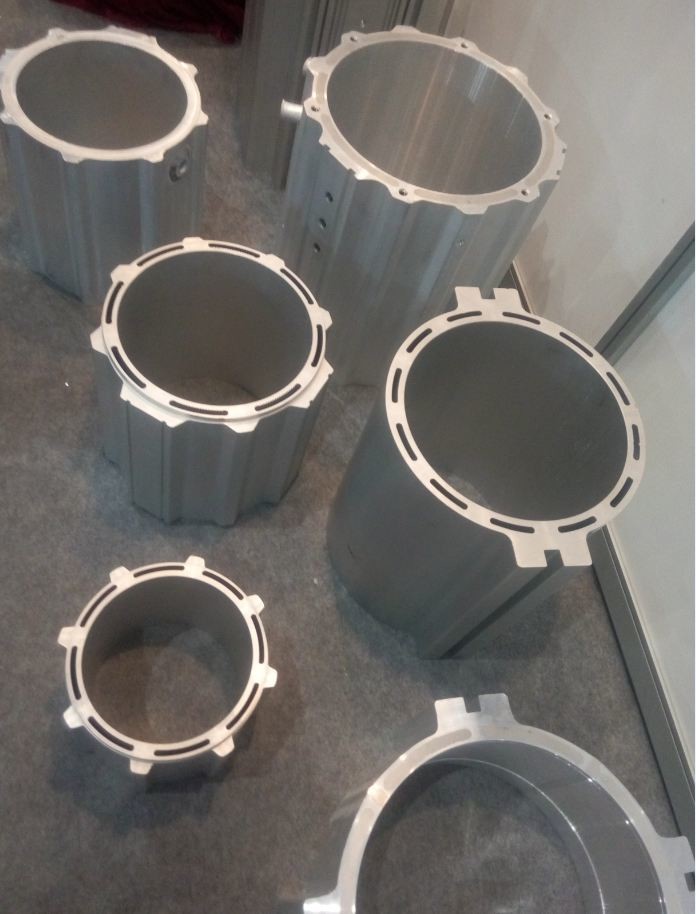

Mill Finish 6063 T5 Aluminum Extrusion Profiles Used As DC Motor Casing DC Motor Shell

Application : motor enclosure , motor casing , motor shell

Diameter: 230mm Through 568mm

Net Weight Per Meter: 19KGS Through 52KGS

Technical Data Sheet

6063 Aluminum Alloy Chemical Composition Limits
Weight%	Al	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Other Each	Others Total
6063	Bal	0.2-0.6	0.35 max	0.10 max	0.10 max	0.45-0.9	0.1 max	0.10 max	0.10 max	0.05 max	0.15 max

6063 Aluminum Alloy Typical Mechanical Properties

Material

Diameter or wall thickness (")

Tensile Strength (ksi) min

Yield Strength (ksi) min

Elongation % in 2"

Alloy 6063

<0.125

Alloy 6063

0.125 - 1.00

6063 T5 Aluminum Extrusion Profiles Mill Finish Aluminium Extrusion Bar
