Drilling Rig 3200MM 7020 Extruded Aluminum Beams BMH255

  • 1
  • 2

Brand Name : HUANYU

Model Number : HYAFB255

Place of Origin : People's Republic of China

MOQ : 2Units

Price : Negotiable

Payment Terms : T/T, T/T

Supply Ability : 44Units/Month

Delivery Time : 7 DAYS

Packaging Details : Plywood Case Length 400cm

Feed Beam Type : BMH255 BMH265

Length : 3100MM

Matchining : AS PER CUSTOMER'S MACHINING DEMAND

Material : 7020 Aluminum Alloy

Application : ATLAS DRILLING RIG

Net Weight Per Meter : 41 Kilograms Per Meter

Length Availability : 2100m through 3200mm

Lead Time : 7 DAYS

Contact Now

BMH255 BMH265 FEED BEAM Aluminium Extruded Profiles 3200MM Long 7020 Extruded Aluminum FEED Beams





1. Material: Aluminum Alloy 7020 With Heat Treatment T6
2. Compliant with Standard of GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

                     curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 32kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 390cm X45cm X45 cm



Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option 3000mm through 4500mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

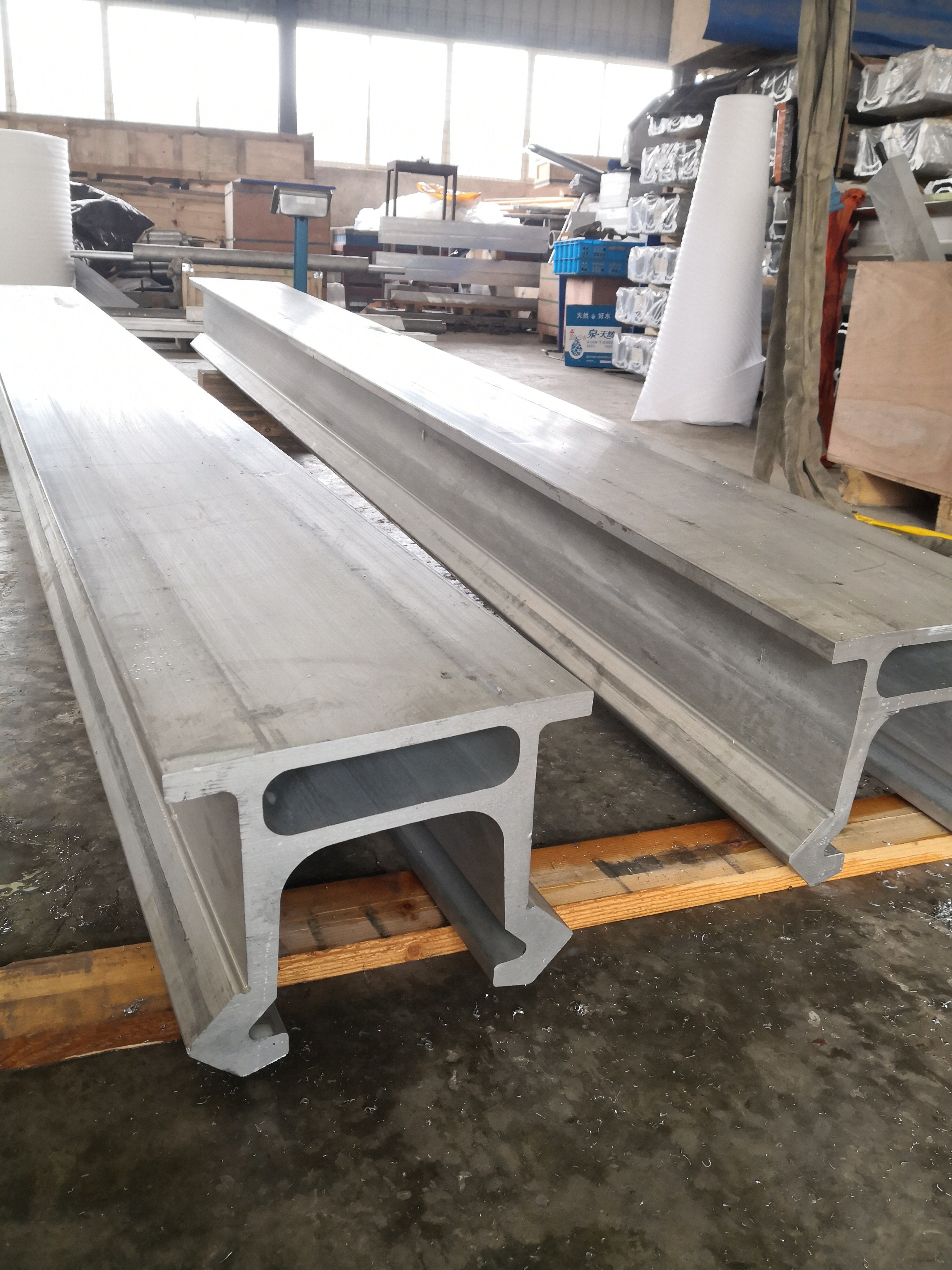

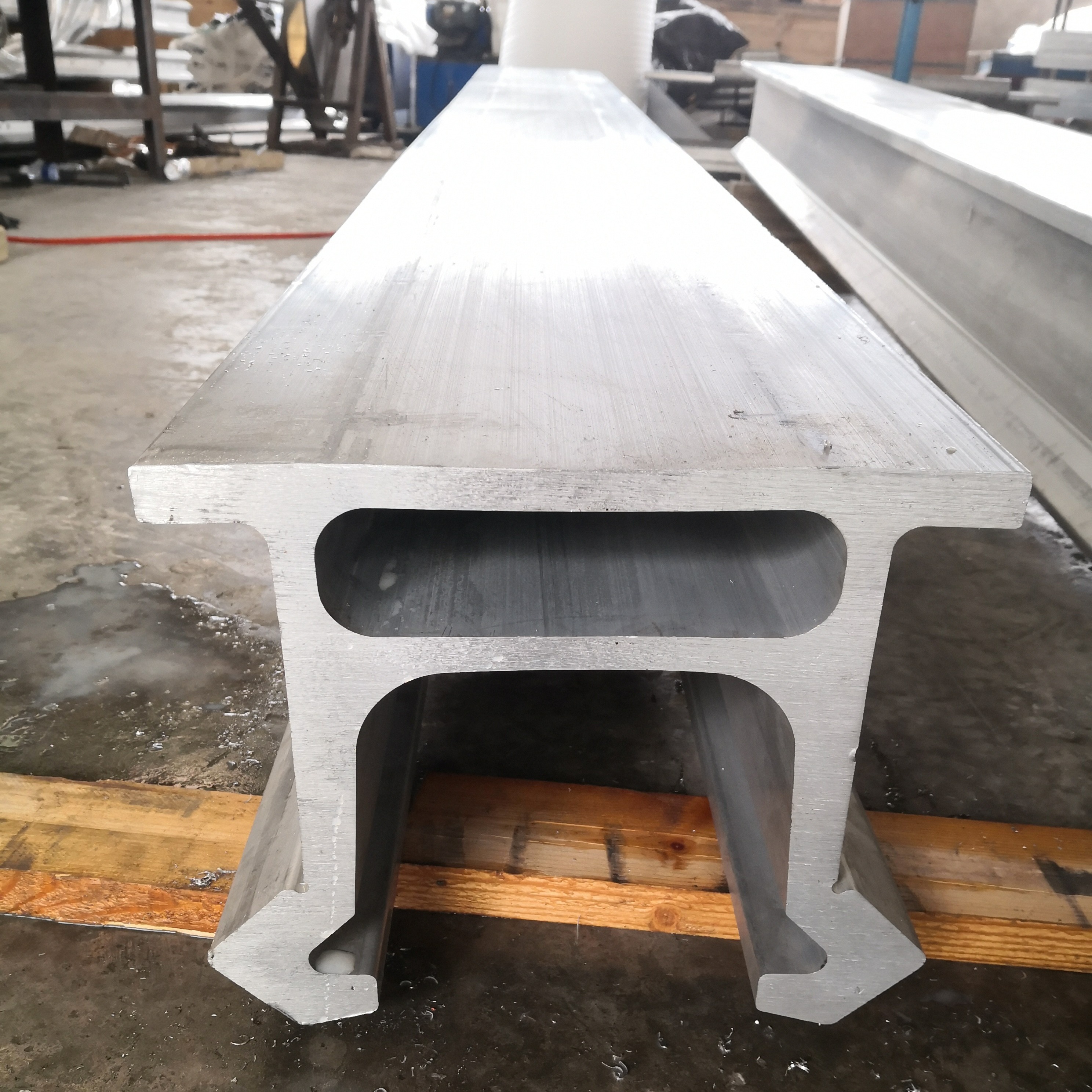

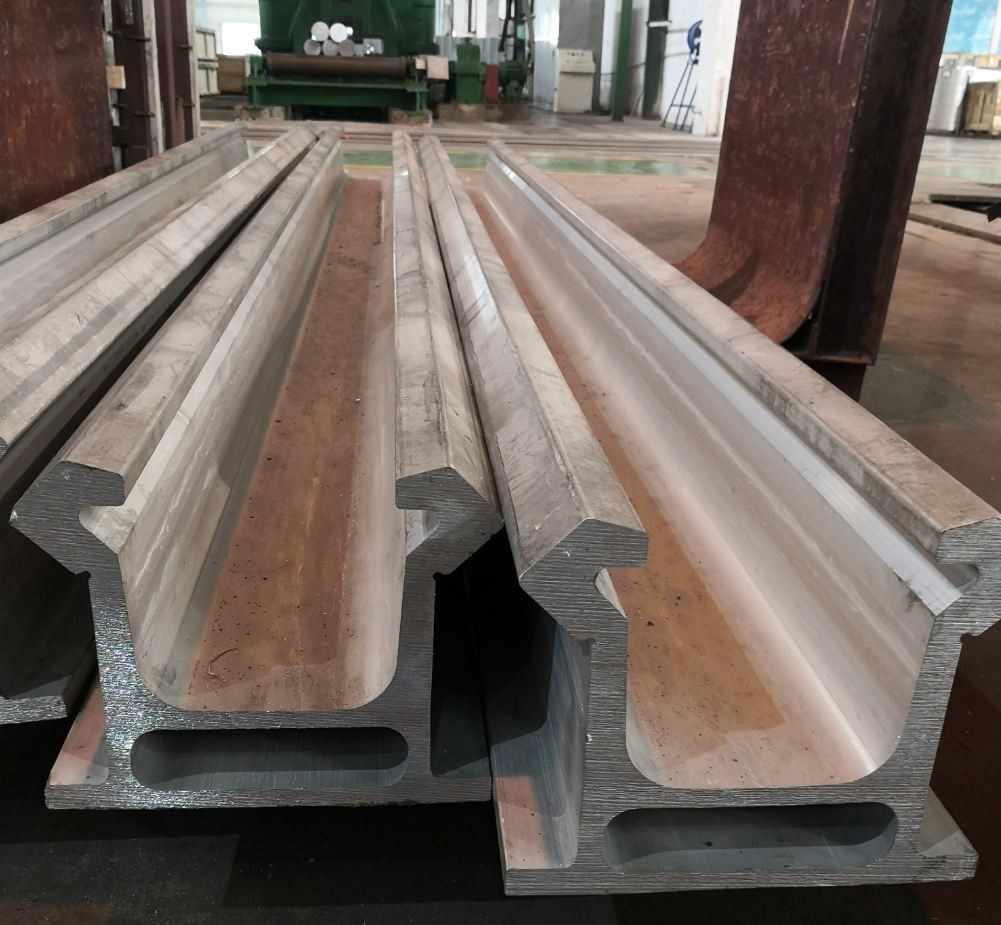

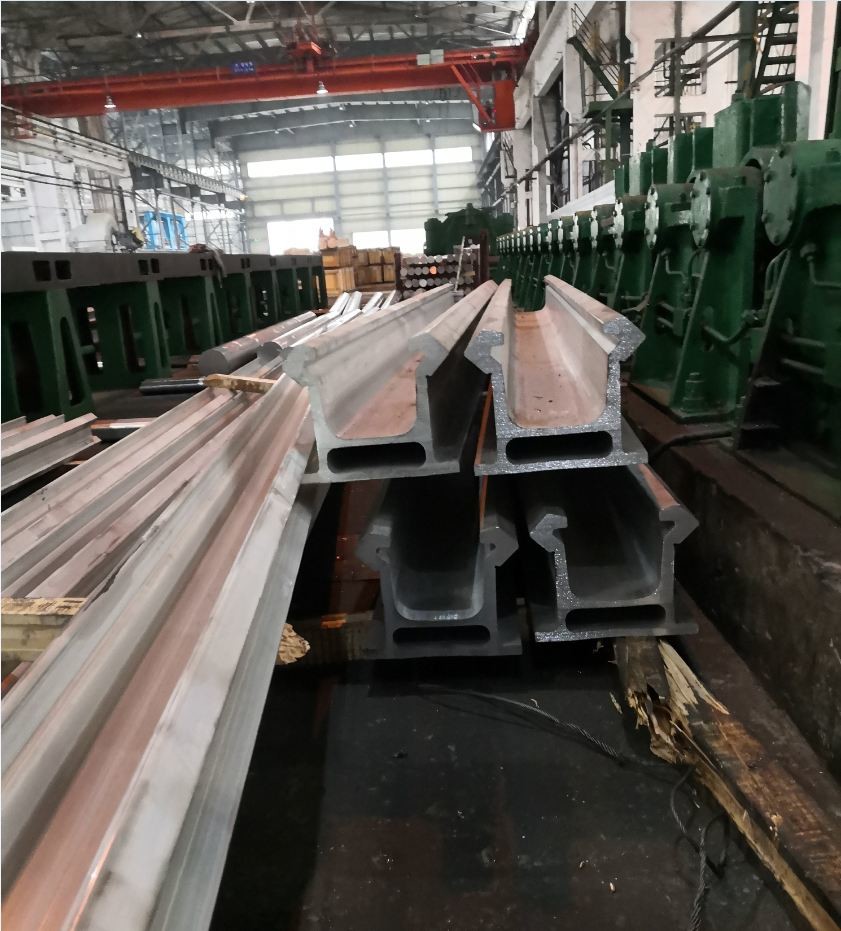

Drilling Rig 3200MM 7020 Extruded Aluminum Beams BMH255Drilling Rig 3200MM 7020 Extruded Aluminum Beams BMH255

Drilling Rig 3200MM 7020 Extruded Aluminum Beams BMH255Drilling Rig 3200MM 7020 Extruded Aluminum Beams BMH255
